Which LCD to use

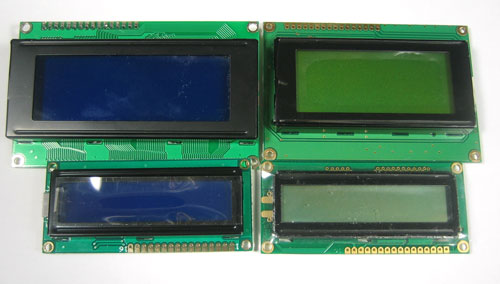

This backpack will work with any 'standard'/'classic' character LCD. It does not work with graphic LCDs. Character LCDs come in sizes ranging from 8x1 (8 characters, one line) to 40x4 (40 characters, four lines). The backpack will also only fit LCDs that have a single line of pins at the top, not the ones that have a 2x10 or 2x8 connector on the side. Those are much rarer these days but just keep a look out for that!


Putting together the backpack onto an LCD is a quick process, and should take only a few minutes with a soldering iron.

Parts check

Verify you have everything in the bag, there should be an assembled and tested PCB, a 2-pin and 3-pin 3.5mm terminal block. The backpack does not come with header or an LCD.

Terminal blocks

The terminal blocks allow you to easily attach and remove the LCD from your wiring, which we think is awfully handy. If you dont want the terminal blocks (they stick out a bit) you can always skip this step.

The terminal blocks come in 2 and 3-pin pieces. Slide them together.


Place the blocks over the corner area of the backpack so that the holes stick out (unless for some reason you want them to face the other way)


Solder them into place


Prepare LCD

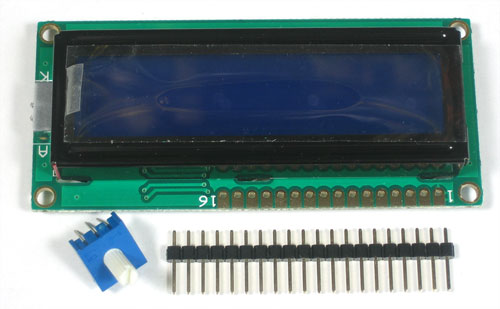

Next we will attach the backpack to the LCD. First we must put header onto the LCD, if you bought the LCD from us, it will come with a stick of header. Otherwise, pick up some standard 0.1" male header

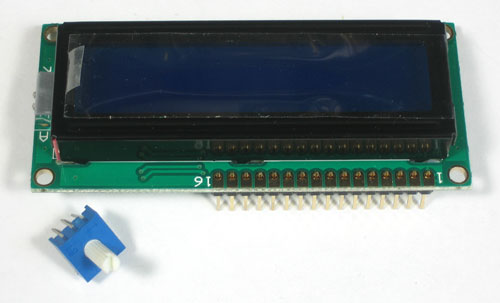

These photos shows a 10K potentiometer, you can ignore it

If the header is too long, just cut/snap it short so that it is 16 pins

Next you'll need to solder the header to the LCD.You must do this, it is not OK to just try to 'press fit' the LCD!

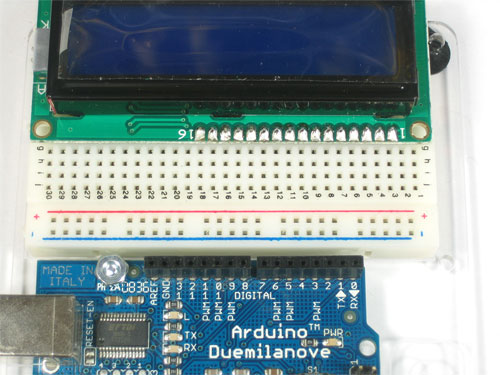

The easiest way we know of doing this is sticking the header into a breadboard and then sitting the LCD on top while soldering. this keeps it steady.

Attach LCD

Now we will attach the backpack. We will show how to do this in a permanent fashion. If you think you would like to remove and replace the LCD at some time, you can use a piece of 16-pin long 0.1" female header as a socket but be aware it will stick out a lot.

There are two options, you can tuck the backpack behind the LCD


Or solder it so it's to the side, this way it's thinner.


Solder the header to the backpack


Make sure that as you solder the first pin, the backpack PCB isn't leaning against the LCD, where the terminal blocks could short against some components. You can put some electrical tape or foam tape behind to avoid this if you think it could be an issue


That's it!

Connect with I2C

The first option we'll show is how to use the i2c interface on the backpack. We'll be showing how to connect with an Arduino, for other microcontrollers please see our MCP23008 library code for the commands to send to the i2c i/o expander. I2c is nice because it only uses two pins, and you can put multiple i2c devices on the same two pins. So for example, you could have up to 7 LCD backpacks+LCDs all on two pins! The bad news is that you have to use the 'hardware' i2c pins that are only on Analog 4 & 5. You can't change those pins and you can't use them for reading analog data. If you absolutely need those two pins, use SPI (see below)

For this we'll need to connnect four wires: GND, 5V, CLK (clock) and DAT (data).

Connect the CLK pin to Analog 5 (i2c SCL pin) and DAT to Analog 4 (i2c SDA pin). Connect the 5V and ground pins to respective power pins.

Download and install the new LiquidCrystal library (scroll to the bottom of the page for download links and instructions) Load up the HelloWorld_i2c example sketch in the new LiquidCrystal library. If you don't see the HelloWorld_i2c example go through the process of installing the new library again, make sure you quit and restart. Upload the sketch. You should see the backlight turn on when the Arduino resets. If you don't see any characters, adjust the Contrast trim potentiometer with a mini-screwdriver until you see the text clearly


If you want to have more than one MCP23008 device (like more than one backpack+LCD) each one needs to have a unique 'address'. You can set the address by jumpering the A0 A1 and A2 solder jumpers. By default, no jumpers are soldered, giving an address of 0. If you want to have an address of 3 you would solder A0 (bit 0) and A1 (bit 1) for an address of "011" = 3 in binary. Then in the code change

// Connect via i2c, default address #0 (A0-A2 not jumpered)
LiquidCrystal lcd(0);


// Connect via i2c, address #3 (A0&A1 jumpered)
LiquidCrystal lcd(3);

Connect with SPI


Arduino Library

We made a modification to the LiquidCrystal library so you can use it for i2c, spi or straight-up-6-pin connections. You can get the modified library that supports SPI/i2c from GitHub.

To download and install it:

  • Click the Downloads button in the top right of the GitHub page
  • You will need to remove the old library, find the folder ArduinoIDE/libraries/LiquidCrystal and put it somewhere else for safekeeping.
  • Uncompress the downloaded library, the folder will be called something like adafruit-LiquidCrystal-xxxxx. Look inside and verify you see a file called MCP23008.h. Rename the folder LiquidCrystal and drag it into your personal library folder which is in arduinosketchfolder/libraries
  • Quit and restart the Arduino IDE

If you have a hankering to use the backpack as a general purpose i2c expander, you should use the plain MCP23008 library, also at github. Its for more advanced users, by the way.
