Parts
Check to make sure your kit comes with the following parts.Sometimes we make mistakes so double check everything and email support@adafruit.com if you need replacements!
| Image | Name |
Description | Part # | Distributor | Qty |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IC1 |
Microcontroller (preprogrammed with Arduino bootloader when purchased in a kit) | Digikey Adafruit (Programmed) |
1 |
||||||||
 |
IC1' |
28-pin socket | Generic | Digikey Mouser |
1 |
|||||||
 |
X1 |
16.00 MHz ceramic oscillator |
|
Digikey | 1 |
|||||||
 |
2.1mm Power Jack | CUI PJ-202AH | Digikey | 1 | ||||||||
 |
D1 |
1N4001 diode | Generic 1N4001 | Digikey Mouser |
1 | |||||||
 |
IC2 | 5V regulator 7805 TO-220 package |
Digikey | 1 | ||||||||
 |
C1 C2 C5 C6 (opt) |
Bypass capacitor 0.1uF ceramic |
Generic |
Digikey Mouser |
3 or 4 |
|||||||
 |
C3 |
Electrolytic capacitor 47uF / 25V |
Generic | Digikey Mouser |
1 | |||||||
 |
C4 |
100uF/10V capacitor |
Generic |
Digikey Mouser |
1 |
|||||||
|
R1 |
10K ohm 1/4W 5% resistor (brown black orange gold) | Generic | Digikey Mouser |
1 |
|||||||
|
R2 R3 |
1.0K 1/4W 5% resistor (brown black red gold) | Generic | 2 |
||||||||
 |
D3 |
3mm red LED | Generic | Digikey | ||||||||
 |
D2 |
3mm green LED | Generic | Digikey | 1 |
|||||||
 |
SW1 |
6mm tact switch button |
Omron B3F-1000 (or equiv) |
Digikey Mouser |
1 |
|||||||
 |
ICSP |
6 pin header, 0.1"x0.1" spacing | Generic | Digikey | 1 |
|||||||
 |
40 pin male header, 0.1" spacing | Generic | Digikey | 1 |
||||||||
 |
Jumper | 1 |
||||||||||
 |

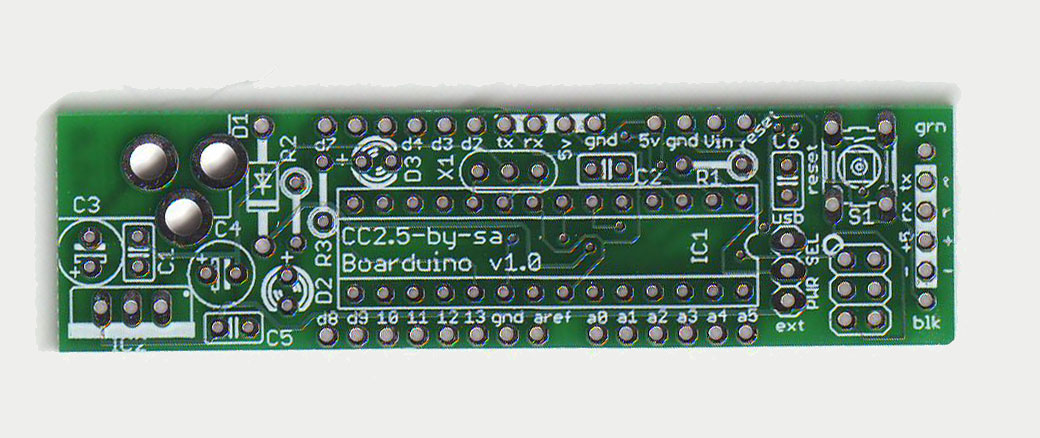

PCB |
Circuit board | Adafruit Industries | 1 |
