Accessorize!

You'll need more than just the machine, here are some important accessories to drain you wallet

Compressor

Considerations

A pick and place needs compressed air to operate. At the least, air is used to vacuum pick the parts from the trays and reels. For the MDC it is also used to control the adhesive/paste dispenser (if its installed) and the hammer that advances the feeders.

The requirements for the compressor are:

  • Air pressure of 70 PSI (in the spec sheet this is written as 0.5 MPa (Mega Pascals) note we ended up needing 85 PSI
  • Air volume capability of 2-3 CFM (60-80 Liters/min)
  • Clean, dry air - this means you'll want a compressor that is oil-free and comes with a moisture/particle filter.

Some things you will need to consider

  • Price
  • Loudness
  • Size

These are trade offs, you wont get a quiet, small compressor for cheap!

Options

There are likely multiple good companies that sell compressors. We aren't compressor-experts so likely there are better options, if you know any, simply add them below!

First, we looked at what the MDC distributor suggested! Manncorp suggests the "Panther PC106" for $2400 This machine is almost certainly drop-shipped direct from Werther, the US distributor of the "PC106" (PC106 Datasheet). We got a direct quote from Werther for the compressor of $1500. Freight was another $150 or so as its rather heavy and they don't ship via UPS. So we went with that.

The PC106 is actually the "Compact 106" from FIAC, an Italian manufacturer. Their USA distributor is Werther International. So basically, FIAC manufactures the compressor for $500, it's sold to Werther for $800 who sells it for $1500 to Manncorp who sells it to you for $2400. Yay middlemen! :)

Werther has a few oil-free compressors they sell that will do the job, so check the list of "Oil free compressors". For example the "PC70/24" (Datasheet) is good machine as well. It can do the job and has a much larger tank (24 L instead of 6 of the PC106) although it is louder due to not being in damping box. So the trade off is its louder but for less time. We got a quote for the compressor of $900.

We're pretty sure you can go with the PC70-24 even though it has less capability (2.5 CFM instead of 4.4) but its probably best only if you have a shop that you can be loud in. If you have noise restrictions the PC106 will be quieter (57 dB/A instead of 62dB/A so about half as loud) but it will cost $600 more. We were on the fence for a few days and ended up with the PC106.

Fittings

The only piece of hardware you'll need is the fitting that connects from the compressor to the pick and place manifold. The MDC had 8mm tubing (check the outside, there should be printing that identifies the tubing diameter).

The PC106 has a 1/4" NPT female connection. Check with the compressor manufacturer before buying the fitting, as compressors vary in their outlet size and gender. Note that 1/4" NPT is pretty common for American-sold compressors, and measures 1/2" in diameter (which is a little confusing at first). The tubing uses "push to connect" which is a black plastic with stainless steel teeth inside. We got our 8mm push-to-connect / male 1/4" NPT at mcmaster carr, part #5225K715 for about $5 each.

This is the fitting

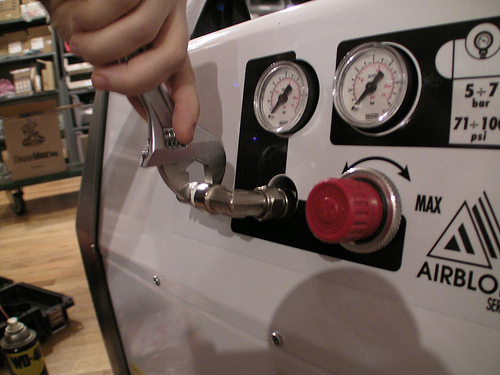

It screws onto the compessor, with a little help of a spanner. There is threadlock on the fitting to keep it leak-free.

Then push the 8mm tubing in to lock in place!

Machine table

So you have a machine, but you can't just operate it on the floor! You'll need a table of some sort to set it onto! This keeps the machine at easy-reach, gives you more storage, and can make moving it easier.

The MDC 7722 is 30" x 30" which makes it a little annoying to find a good table. Most worktables are 2' wide. We ended up going with a stainless steel kitchen work table. These are available in nearly any size, and are not unreasonably priced. We got Advance Tabco model AG-300 / ELAG-300 which is 36" high and 30"x30" stainless steel top, with plastic rubber feet. Its pretty easy to move around and solidly made. We paid $320 w/freight from Atlanta Fixture, but of course it is drop-shipped direct from Advance Tabco, our came via UPS ground.

They look kinda like this (the -300 is square-top of course)

With the machine on, it looks like this:

We put the shelf up 2' high to allow the compressor to sit underneath, and the computer on the shelf. This is pretty stable if you level the feet. We may end up clamping the machine to the table.

Computer

Computer stand
